DF13-40DS-1.25DSA(55)

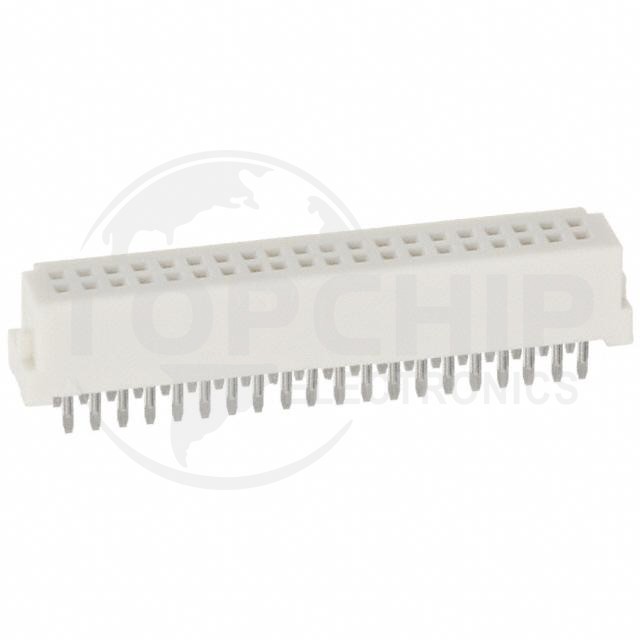

Image is for reference, please contact us to get the real picture

Manufacturer Part
DF13-40DS-1.25DSA(55)
Manufacturer
Hirose
Description
CONN RCPT 40POS 0.049 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
1121
Datasheets
-

DF13-40DS-1.25DSA(55) Specifications

  • Series:DF13
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:40
  • Number of Positions Loaded:All
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.049" (1.25mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Insulation Color:Beige
  • Insulation Height:0.197" (5.00mm)
  • Contact Length - Post:0.079" (2.00mm)
  • Operating Temperature:-35°C ~ 85°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:6.8mm
  • Ingress Protection:-
  • Features:Pick and Place
  • Current Rating (Amps):1A
  • Voltage Rating:150VAC
