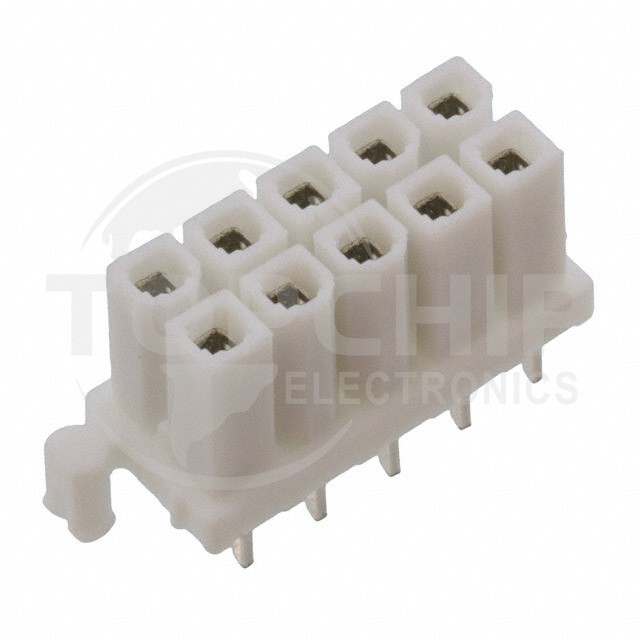

0444751021 Specifications

• Series:Mini-Fit HCS 44475
• Package:Tray
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Female Socket
• Style:Board to Board or Cable
• Number of Positions:10
• Number of Positions Loaded:All
• Pitch - Mating:0.165" (4.20mm)
• Number of Rows:2
• Row Spacing - Mating:0.165" (4.20mm)
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:100.0µin (2.54µm)
• Insulation Color:Natural
• Insulation Height:0.446" (11.33mm)
• Contact Length - Post:0.138" (3.50mm)
• Operating Temperature:-40°C ~ 105°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Tin
• Mated Stacking Heights:10.9mm, 15.24mm, 15.82mm
• Ingress Protection:-
• Features:Board Lock
• Current Rating (Amps):-
• Voltage Rating:600VAC
