920-0085-01

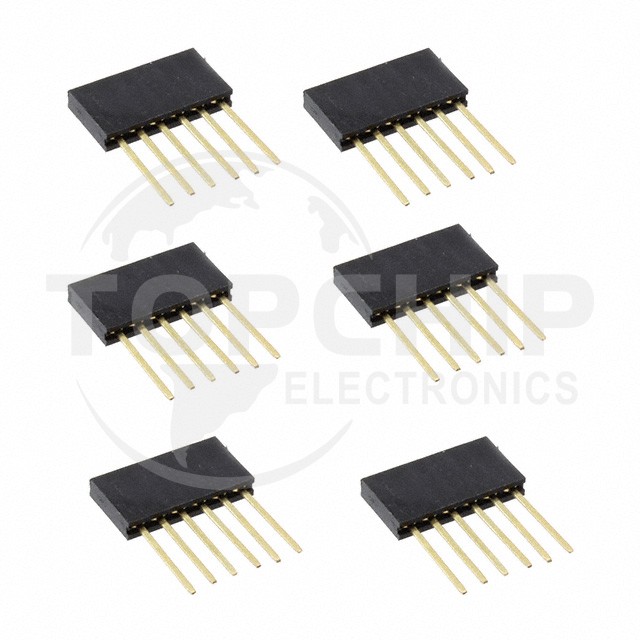

Image is for reference, please contact us to get the real picture

Manufacturer Part
920-0085-01
Manufacturer
SchmartBoard
Description
CONN HDR 6POS 0.1 GOLD PCB 6PC
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
155
Datasheets
-

920-0085-01 Specifications

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:6
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Insulation Color:Black
  • Insulation Height:0.335" (8.51mm)
  • Contact Length - Post:0.413" (10.50mm)
  • Operating Temperature:-
  • Material Flammability Rating:-
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):-
  • Voltage Rating:-
