Manufacturer Part

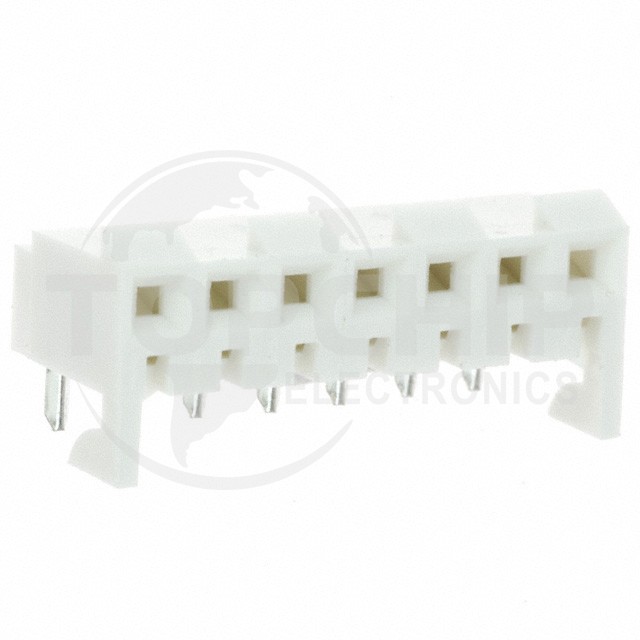

0009481074
Manufacturer
Woodhead - Molex
Description
CONN RCPT 7P 0.156 TIN EDGE MNT
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
77
Datasheets
-

0009481074 Specifications

  • Series:KK396, 41815
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:7
  • Number of Positions Loaded:All
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Board Edge, Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Insulation Color:Natural
  • Insulation Height:0.308" (7.82mm)
  • Contact Length - Post:0.145" (3.68mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Hooks
  • Current Rating (Amps):5A
  • Voltage Rating:600V
