215309-8

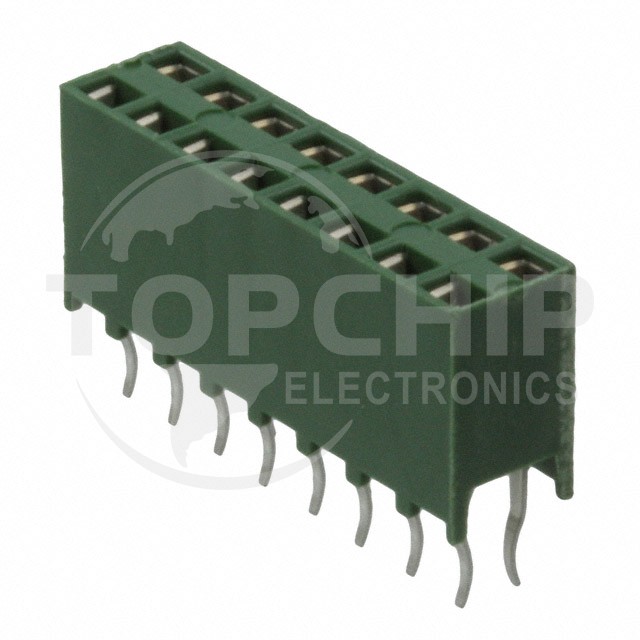

Image is for reference, please contact us to get the real picture

Manufacturer Part
215309-8
Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 16POS 0.1 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
2153
Datasheets
-

215309-8 Specifications

  • Series:AMPMODU HV-100
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:16
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:31.5µin (0.80µm)
  • Insulation Color:Green
  • Insulation Height:0.335" (8.51mm)
  • Contact Length - Post:0.122" (3.10mm)
  • Operating Temperature:-
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):-
  • Voltage Rating:-
