2314846-6

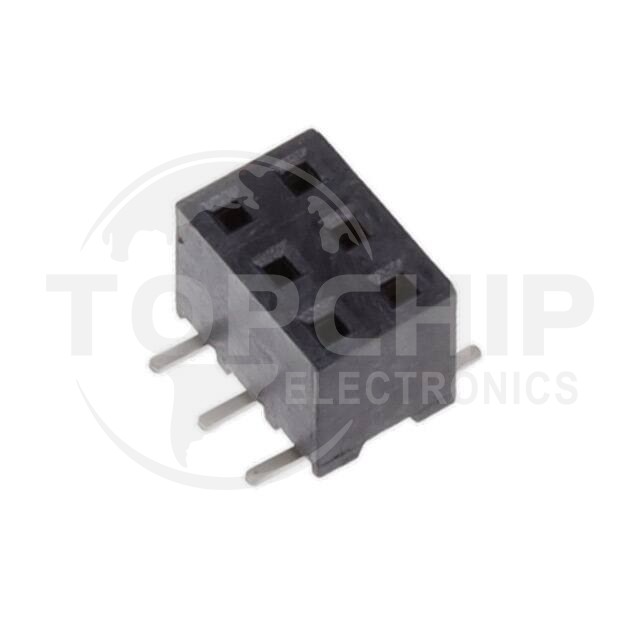

Image is for reference, please contact us to get the real picture

Manufacturer Part
2314846-6
Manufacturer
TE Connectivity AMP Connectors
Description
6P,2MM,BB,REC,DRVT,SMD,AU.76,TB,
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
2250
Datasheets
-

2314846-6 Specifications

  • Series:AMPMODU
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle, Bottom or Top Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:6
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.177" (4.50mm)
  • Contact Length - Post:-
  • Operating Temperature:-40°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Pick and Place
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC
