M20-7881046

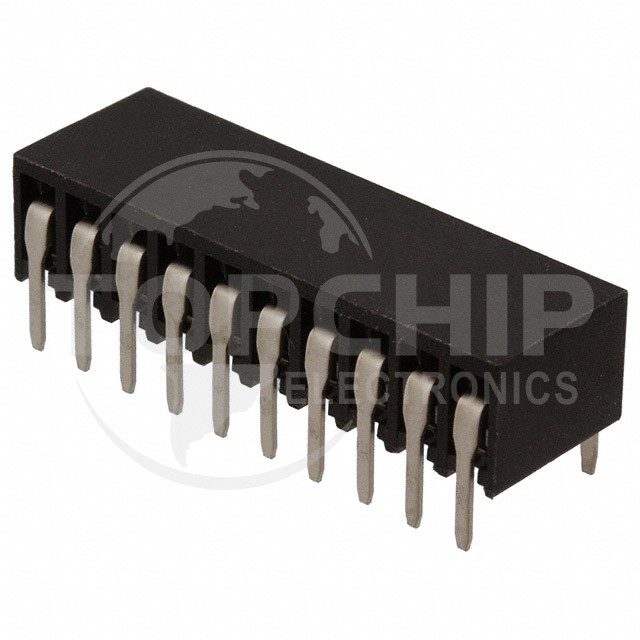

Image is for reference, please contact us to get the real picture

Manufacturer Part
M20-7881046
Manufacturer
Harwin
Description
CONN RCPT 20POS 0.1 TIN PCB R/A
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
429
Datasheets
-

M20-7881046 Specifications

  • Series:M20
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:20
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Insulation Color:Black
  • Insulation Height:0.232" (5.90mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:1000V
