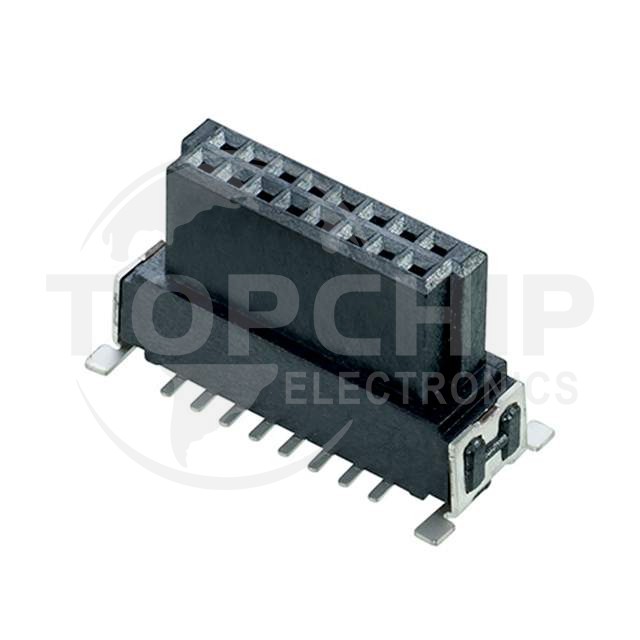

M55-6011642R Specifications

• Series:Archer Kontrol
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Female Socket
• Style:Board to Board
• Number of Positions:16
• Number of Positions Loaded:All
• Pitch - Mating:0.050" (1.27mm)
• Number of Rows:2
• Row Spacing - Mating:0.050" (1.27mm)
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Latch Holder
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:1.00µin (0.025µm)
• Insulation Color:Black
• Insulation Height:0.356" (9.05mm)
• Contact Length - Post:-
• Operating Temperature:-55°C ~ 125°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Tin
• Mated Stacking Heights:10.8mm, 12.3mm, 13.9mm
• Ingress Protection:-
• Features:Board Guide, Pick and Place, Solder Retention
• Current Rating (Amps):1.2A
• Voltage Rating:100VAC
