MDF7-20D-2.54DSA(56)

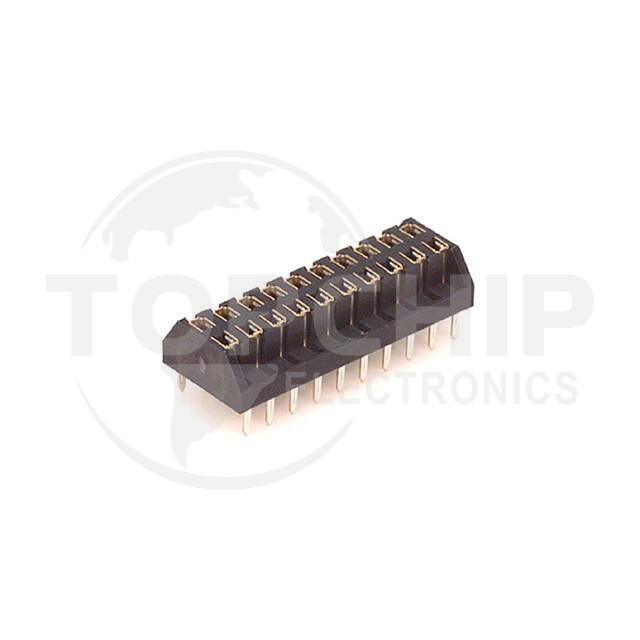

Image is for reference, please contact us to get the real picture

Manufacturer Part
MDF7-20D-2.54DSA(56)
Manufacturer
Hirose
Description
CONN RCPT 20POS 0.1 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
90
Datasheets
-

MDF7-20D-2.54DSA(56) Specifications

  • Series:MDF7
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle, Bottom Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:20
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Insulation Color:Black
  • Insulation Height:0.197" (5.00mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-35°C ~ 85°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:250VAC
