DF3-6S-2DSA(55)

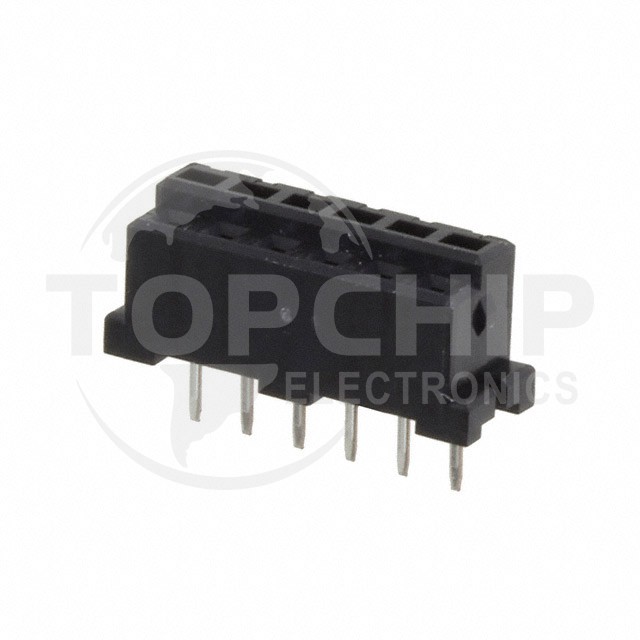

Image is for reference, please contact us to get the real picture

Manufacturer Part
DF3-6S-2DSA(55)
Manufacturer
Hirose
Description
CONN RCPT 6POS 0.079 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
522
Datasheets
-

DF3-6S-2DSA(55) Specifications

  • Series:DF3
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:6
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Insulation Color:Black
  • Insulation Height:0.232" (5.90mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-30°C ~ 85°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:6.6mm, 7.5mm
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:30VAC
