690368191072

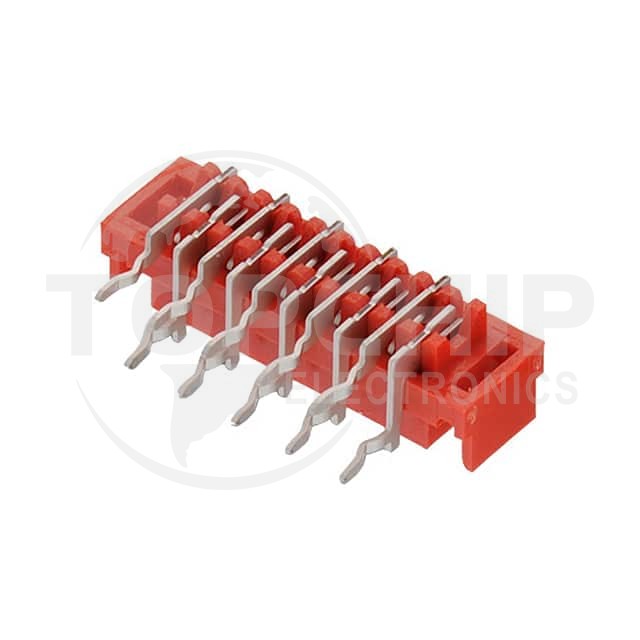

Image is for reference, please contact us to get the real picture

Manufacturer Part
690368191072
Manufacturer
Wurth Elektronik Midcom
Description
WR-MM FEMALE ANGLED CONNECTOR WI
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
66
Datasheets
-

690368191072 Specifications

  • Series:WR-MM
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Board or Cable
  • Number of Positions:10
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.059" (1.50mm)
  • Mounting Type:Through Hole, Right Angle
  • Termination:Kinked Pin, Solder
  • Fastening Type:Latch Lock
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Insulation Color:Red
  • Insulation Height:0.228" (5.80mm)
  • Contact Length - Post:0.122" (3.10mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):1.5A per Contact
  • Voltage Rating:100VAC
