801-43-005-10-002000

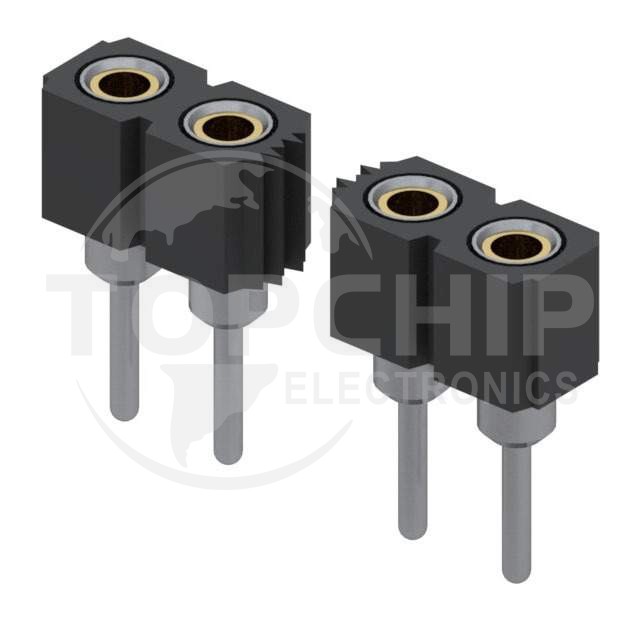

Image is for reference, please contact us to get the real picture

Manufacturer Part
801-43-005-10-002000
Manufacturer
Mill-Max
Description
CONN RCPT 5POS 0.1 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
2161
Datasheets
-

801-43-005-10-002000 Specifications

  • Series:801
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:5
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.165" (4.20mm)
  • Contact Length - Post:0.125" (3.18mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):4.5A
  • Voltage Rating:-
