1-2314821-4

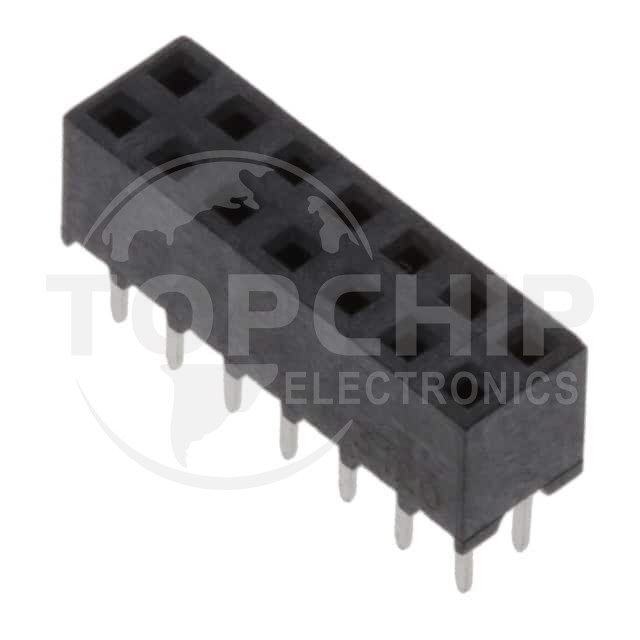

Image is for reference, please contact us to get the real picture

Manufacturer Part
1-2314821-4
Manufacturer
TE Connectivity AMP Connectors
Description
14P,2MM,B-B,REC,DRVT,2.7,0.38AU,
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
2000
Datasheets
-

1-2314821-4 Specifications

  • Series:AMPMODU
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:14
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Insulation Color:Black
  • Insulation Height:0.177" (4.50mm)
  • Contact Length - Post:0.106" (2.69mm)
  • Operating Temperature:-40°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):2A
  • Voltage Rating:125V
