NPPN152AFCN-RC

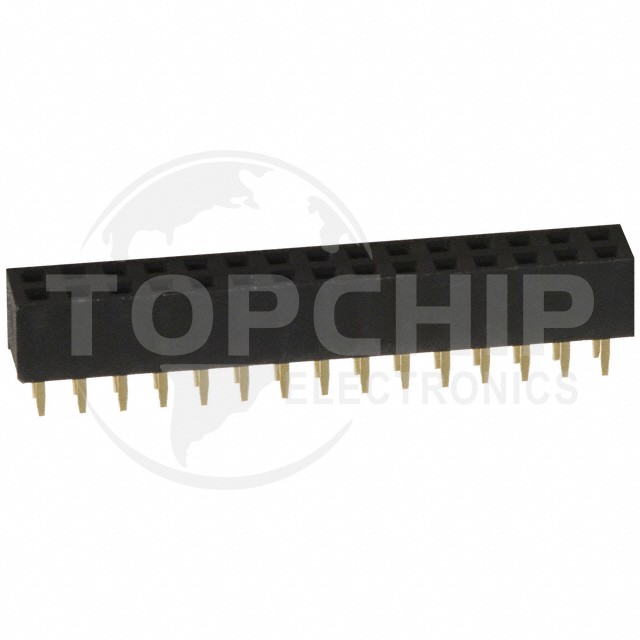

Image is for reference, please contact us to get the real picture

Manufacturer Part
NPPN152AFCN-RC
Manufacturer
Sullins Connector Solutions
Description
CONN HDR 30POS 0.079 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
1397
Datasheets
-

NPPN152AFCN-RC Specifications

  • Series:-
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:30
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Insulation Color:Black
  • Insulation Height:0.169" (4.30mm)
  • Contact Length - Post:0.094" (2.40mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):1A
  • Voltage Rating:-
