91601-309LF

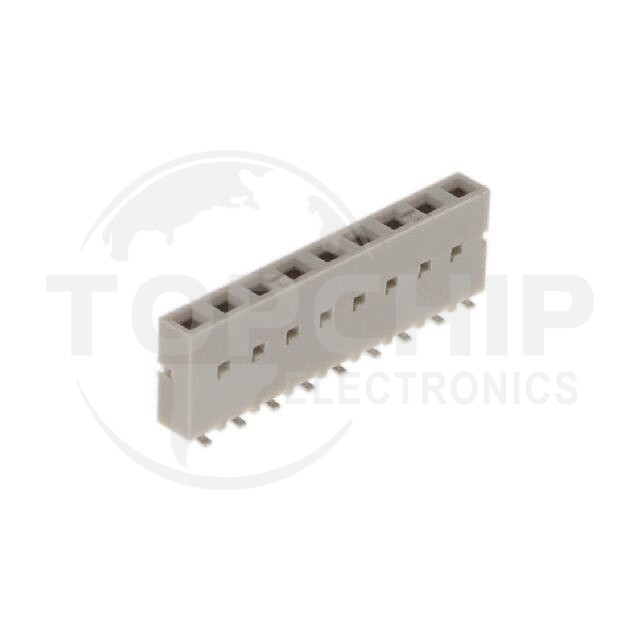

Image is for reference, please contact us to get the real picture

Manufacturer Part
91601-309LF
Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN RCPT 9POS 0.1 GOLD SMD
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
485
Datasheets
-

91601-309LF Specifications

  • Series:Dubox™
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle, Bottom or Top Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:9
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Gray
  • Insulation Height:0.275" (6.99mm)
  • Contact Length - Post:-
  • Operating Temperature:-
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:10.81mm
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):-
  • Voltage Rating:-
