2-2178711-0

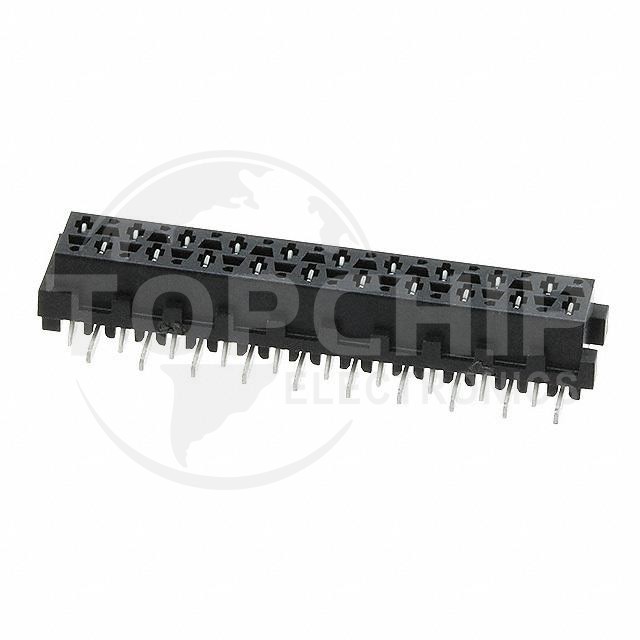

Image is for reference, please contact us to get the real picture

Manufacturer Part
2-2178711-0
Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 20POS 0.1 TIN SMD
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
900
Datasheets
-

2-2178711-0 Specifications

  • Series:Micro-MaTch
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Board or Cable
  • Number of Positions:20
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:118.1µin (3.00µm)
  • Insulation Color:Black
  • Insulation Height:0.209" (5.30mm)
  • Contact Length - Post:-
  • Operating Temperature:-30°C ~ 85°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):-
  • Voltage Rating:100VDC
