150216-6002-RB

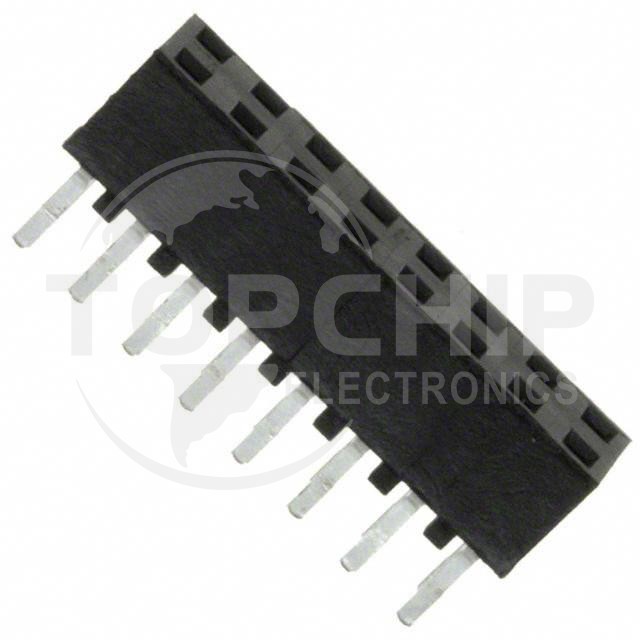

Image is for reference, please contact us to get the real picture

Manufacturer Part
150216-6002-RB
Manufacturer
3M
Description
CONN RCPT 16POS 0.079 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
117
Datasheets
-

150216-6002-RB Specifications

  • Series:1502
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:16
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.177" (4.50mm)
  • Contact Length - Post:0.100" (2.54mm)
  • Operating Temperature:-55°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):1A
  • Voltage Rating:500VDC
