SFH11-PBPC-D07-RA-BK

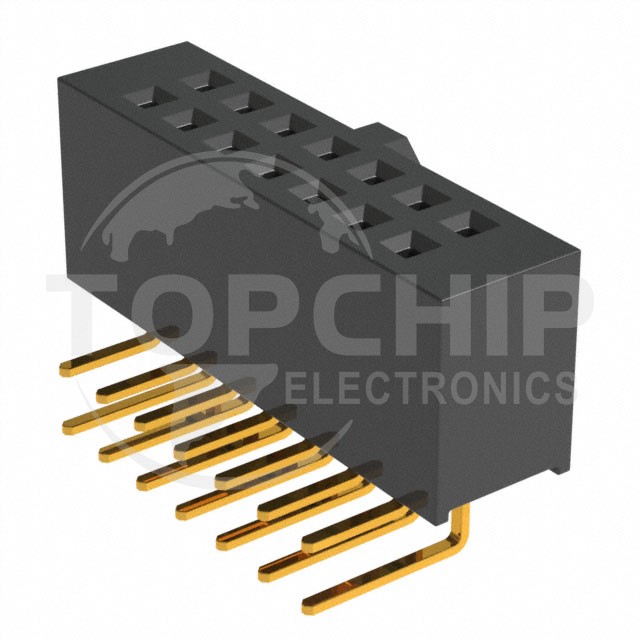

Image is for reference, please contact us to get the real picture

Manufacturer Part
SFH11-PBPC-D07-RA-BK
Manufacturer
Sullins Connector Solutions
Description
CONN HDR 14POS 0.1 GOLD PCB R/A
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
8644
Datasheets
-

SFH11-PBPC-D07-RA-BK Specifications

  • Series:SFH11
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:14
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Insulation Color:Black
  • Insulation Height:0.236" (6.00mm)
  • Contact Length - Post:0.106" (2.69mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Polarizing Key
  • Current Rating (Amps):3A
  • Voltage Rating:-
