1658687-1

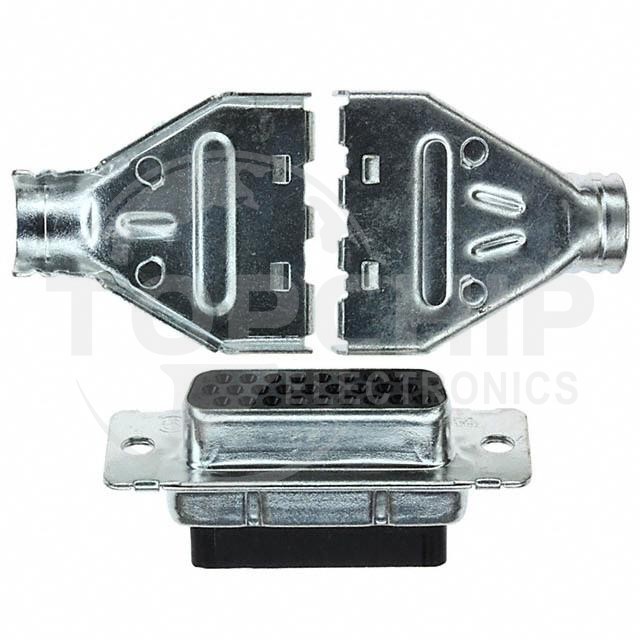

Image is for reference, please contact us to get the real picture

Manufacturer Part
1658687-1
Manufacturer
TE Connectivity AMP Connectors
Description
CONN D-SUB HD HOUSING RCPT 26POS
Category
Connectors, Interconnects
Family
D-Sub, D-Shaped Connectors - Housings
Series
-
In Stock
26
Datasheets
-

1658687-1 Specifications

  • Series:AMPLIMITE HDP-22
  • Package:Bulk
  • Part Status:Active
  • Connector Style:D-Sub, High Density
  • Connector Type:Receptacle for Female Contacts
  • Number of Positions:26
  • Number of Rows:3
  • Shell Size, Connector Layout:2 (DA, A) High Density
  • Contact Type:Signal
  • Mounting Type:Free Hanging (In-Line)
  • Flange Feature:Housing/Shell (Unthreaded)
  • Features:Shielded
  • Shell Material, Finish:Steel, Tin Plated
  • Shell Finish Thickness:200µin (5.08µm)
  • Ingress Protection:-
