1794220000

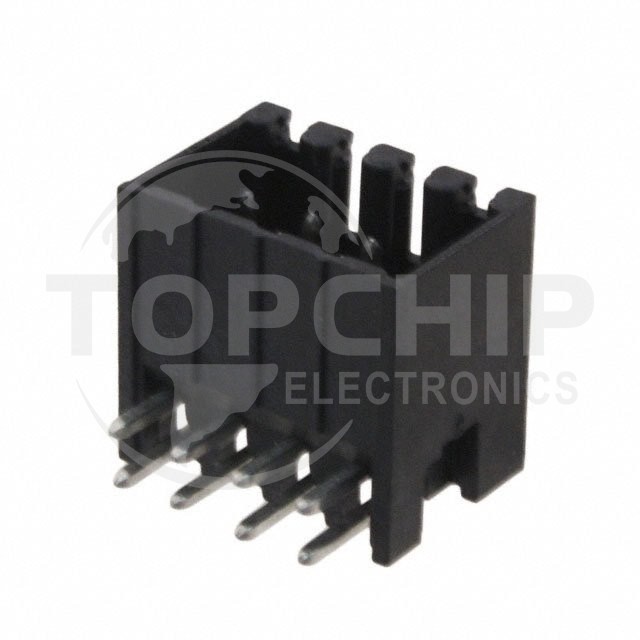

Image is for reference, please contact us to get the real picture

Manufacturer Part
1794220000
Manufacturer
Weidmuller
Description
TERM BLOCK HDR 8POS 90DEG 3.5MM
Category
Connectors, Interconnects
Family
Terminal Blocks - Headers, Plugs and Sockets
Series
-
In Stock
273300
Datasheets
-

1794220000 Specifications

  • Series:Omnimate S2L
  • Package:Bulk
  • Part Status:Active
  • Type:Header, Male Pins, Shrouded (4 Side)
  • Number of Positions:8
  • Positions Per Level:4
  • Number of Levels:2
  • Pitch:0.138" (3.50mm)
  • Header Orientation:90°, Right Angle
  • Plug Wire Entry:-
  • Termination Style:Solder
  • Mounting Type:Through Hole
  • Current - IEC:10A
  • Voltage - IEC:160 V
  • Current - UL:10 A
  • Voltage - UL:150 V
  • Wire Gauge or Range - AWG:-
  • Wire Gauge or Range - mm²:-
  • Color:Black
  • Operating Temperature:-50°C ~ 100°C
  • Contact Mating Finish:Tin
  • Features:-
