1016420000

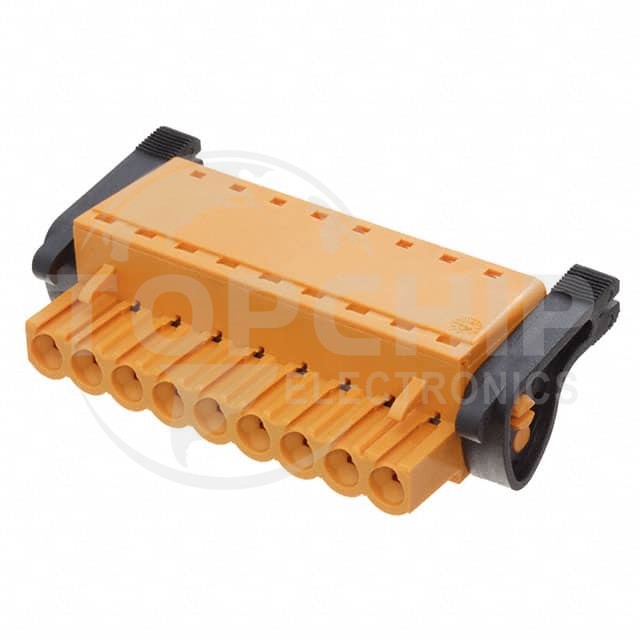

Image is for reference, please contact us to get the real picture

Manufacturer Part
1016420000
Manufacturer
Weidmuller
Description
TERM BLOCK PLUG 9POS STR 5MM
Category
Connectors, Interconnects
Family
Terminal Blocks - Headers, Plugs and Sockets
Series
-
In Stock
60
Datasheets
-

1016420000 Specifications

  • Series:Omnimate BL
  • Package:Box
  • Part Status:Active
  • Type:Plug, Female Sockets
  • Number of Positions:9
  • Positions Per Level:9
  • Number of Levels:1
  • Pitch:0.197" (5.00mm)
  • Header Orientation:-
  • Plug Wire Entry:180°
  • Termination Style:Screwless - Leg Spring, Push-In Spring
  • Mounting Type:Free Hanging (In-Line)
  • Current - IEC:20.5A
  • Voltage - IEC:400 V
  • Current - UL:10 A
  • Voltage - UL:300 V
  • Wire Gauge or Range - AWG:12-26 AWG
  • Wire Gauge or Range - mm²:0.2-2.5mm²
  • Color:Orange
  • Operating Temperature:-50°C ~ 100°C
  • Contact Mating Finish:Tin
  • Features:Ejector Latches, Retention Latches (Non-Wire Side)
