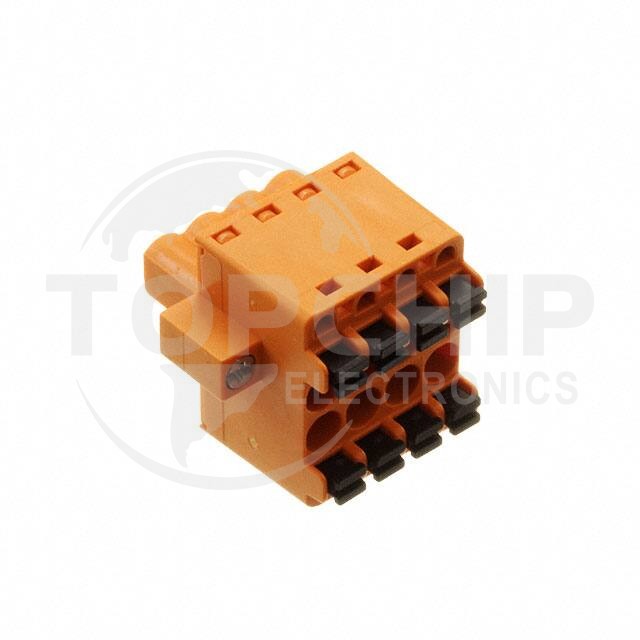

1059420000 Specifications

• Series:Omnimate BL
• Package:Box
• Part Status:Active
• Type:Plug, Female Sockets
• Number of Positions:4
• Positions Per Level:4 (Mate), 8 (Input)
• Number of Levels:1 (Mate), 2 (Input)
• Pitch:0.200" (5.08mm)
• Header Orientation:-
• Plug Wire Entry:180°
• Termination Style:Screwless - Leg Spring, Push-In Spring
• Mounting Type:Free Hanging (In-Line)
• Current - IEC:20.8A
• Voltage - IEC:400 V
• Current - UL:10 A
• Voltage - UL:300 V
• Wire Gauge or Range - AWG:12-26 AWG
• Wire Gauge or Range - mm²:0.2-2.5mm²
• Color:Orange
• Operating Temperature:-50°C ~ 100°C
• Contact Mating Finish:Tin
• Features:Mating Flange, Retention Latches (Non-Wire Side)
