696422-6

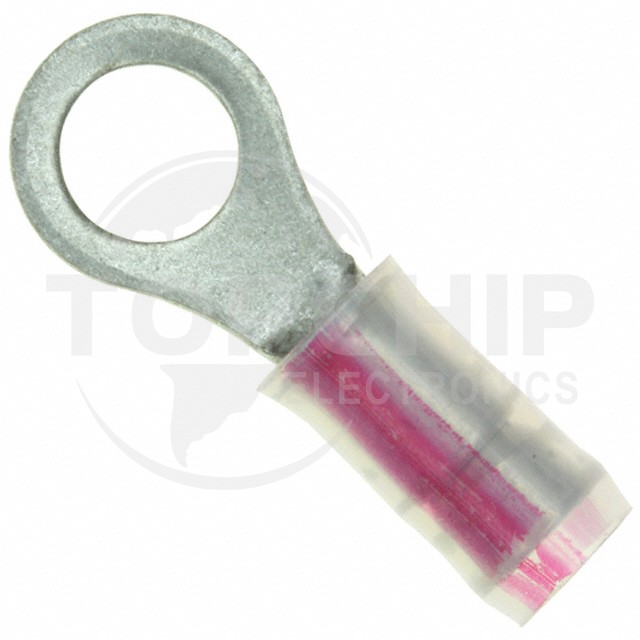

Image is for reference, please contact us to get the real picture

Manufacturer Part
696422-6
Manufacturer
TE Connectivity AMP Connectors
Description
CONN RING CIRC 16-22AWG #10
Category
Connectors, Interconnects
Family
Terminals - Ring Connectors
Series
-
In Stock
5771
Datasheets
-

696422-6 Specifications

  • Series:PIDG
  • Package:Bulk
  • Part Status:Active
  • Terminal Type:Circular
  • Stud/Tab Size:10 Stud
  • Thickness:0.031" (0.79mm)
  • Width - Outer Edges:0.312" (7.92mm)
  • Length - Overall:0.849" (21.56mm)
  • Mounting Type:Free Hanging (In-Line)
  • Termination:Crimp
  • Wire Gauge:16-22 AWG
  • Insulation:Insulated
  • Features:Radiation Resistant, Serrated Termination
  • Color:Natural, Red Stripe
  • Contact Material:Copper
  • Contact Finish:Tin
