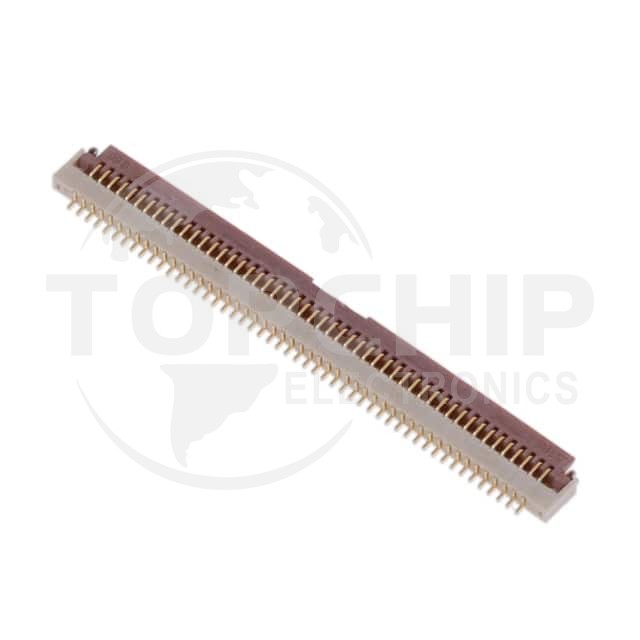

FH19C-50S-0.5SH(10) Specifications

• Series:FH19C
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Last Time Buy
• Flat Flex Type:FFC, FPC
• Mounting Type:Surface Mount, Right Angle
• Connector/Contact Type:Contacts, Bottom
• Number of Positions:50
• Pitch:0.020" (0.50mm)
• Termination:Solder
• FFC, FCB Thickness:0.20mm
• Height Above Board:0.035" (0.88mm)
• Locking Feature:Flip Lock
• Cable End Type:Tapered
• Contact Material:Phosphor Bronze
• Contact Finish:Gold
• Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
• Actuator Material:Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
• Features:Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating:50V
• Operating Temperature:-55°C ~ 85°C
• Material Flammability Rating:UL94 V-0
