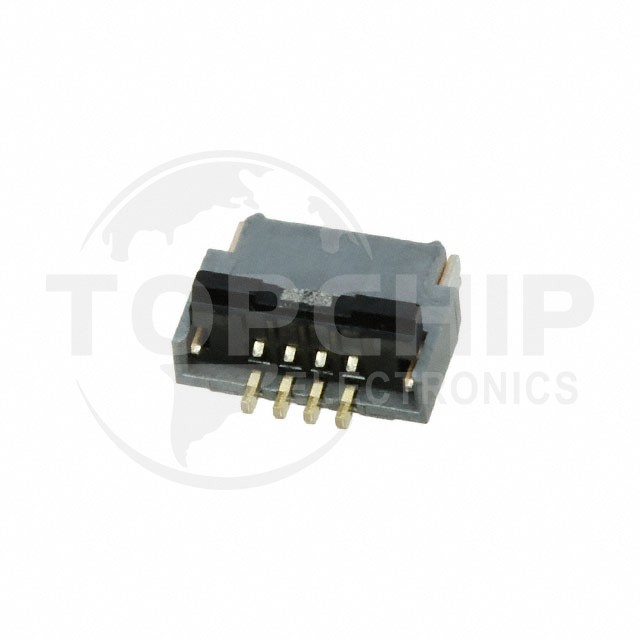

FH34SRJ-4S-0.5SH(50) Specifications

• Series:FH34SRJ
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Flat Flex Type:FFC, FPC
• Mounting Type:Surface Mount, Right Angle
• Connector/Contact Type:Contacts, Top and Bottom
• Number of Positions:4
• Pitch:0.020" (0.50mm)
• Termination:Solder
• FFC, FCB Thickness:0.30mm
• Height Above Board:0.039" (1.00mm)
• Locking Feature:Rotary Lock, Backlock
• Cable End Type:Tapered
• Contact Material:Phosphor Bronze
• Contact Finish:Gold
• Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
• Actuator Material:Polyamide (PA), Nylon
• Features:Zero Insertion Force (ZIF)
• Voltage Rating:50V
• Operating Temperature:-55°C ~ 85°C
• Material Flammability Rating:UL94 V-0
