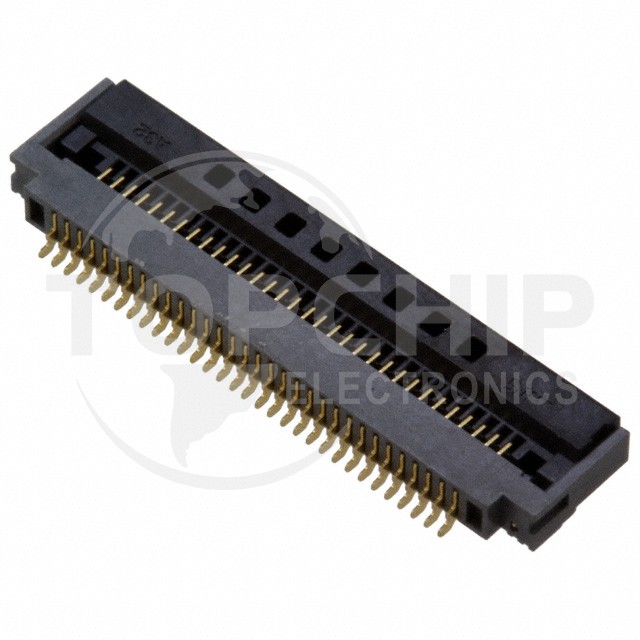

FH52-32S-0.5SH(99) Specifications

• Series:FH52
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Flat Flex Type:FFC, FPC
• Mounting Type:Surface Mount, Right Angle
• Connector/Contact Type:Contacts, Bottom
• Number of Positions:32
• Pitch:0.020" (0.50mm)
• Termination:Solder
• FFC, FCB Thickness:0.30mm
• Height Above Board:0.079" (2.00mm)
• Locking Feature:Flip Lock
• Cable End Type:Tabbed
• Contact Material:Phosphor Bronze
• Contact Finish:Gold
• Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
• Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
• Features:-
• Voltage Rating:-
• Operating Temperature:-40°C ~ 105°C
• Material Flammability Rating:UL94 V-0
