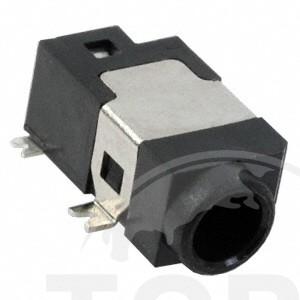

PJ-043-SMT-TR

Image is for reference, please contact us to get the real picture

Manufacturer Part
PJ-043-SMT-TR
Manufacturer
CUI Devices
Description
CONN PWR JACK 1.1X3MM SOLDER
Category
Connectors, Interconnects
Family
Barrel - Power Connectors
Series
-
In Stock
402
Datasheets
-

PJ-043-SMT-TR Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Jack
  • Gender:Male
  • Industry Recognized Mating Diameter:1.10mm ID (0.043"), 3.00mm OD (0.118")
  • Actual Diameter:0.039" (1.00mm ID), 0.126" (3.20mm OD)
  • Number of Positions/Contacts:2 Conductors, 3 Contacts
  • Internal Switch(s):Single Switch, Normally Closed
  • Mounting Type:Surface Mount, Right Angle
  • Mounting Feature:-
  • Termination:Solder
  • Shielding:Shielded
  • Features:Board Guide
  • Insulation Color:-
  • Voltage - Rated:24VDC
  • Current Rating (Amps):2 A
  • Mating Length/Depth:0.315" (8.00mm)
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
