JL05-6A28-21P-R

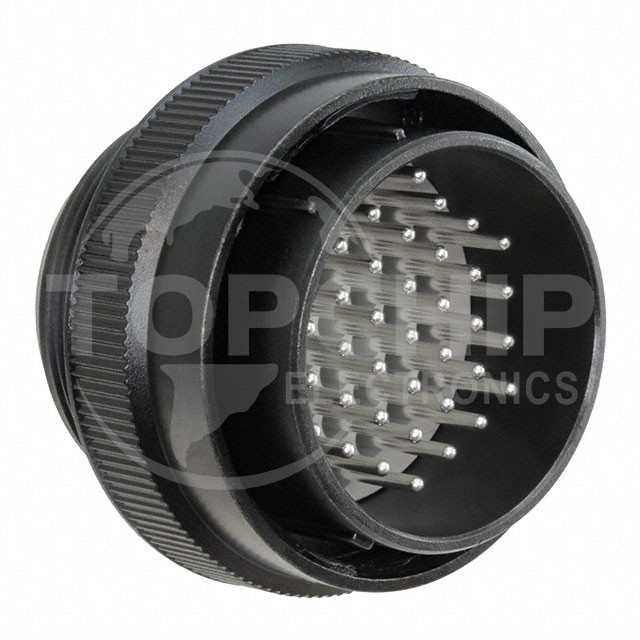

Image is for reference, please contact us to get the real picture

Manufacturer Part
JL05-6A28-21P-R
Manufacturer
JAE Electronics
Description
CONN PLUG MALE 37POS SILV SOLDER
Category
Connectors, Interconnects
Family
Circular Connectors
Series
-
In Stock
6
Datasheets
-

JL05-6A28-21P-R Specifications

  • Series:JL05
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Plug, Male Pins
  • Number of Positions:37 (36 + PE)
  • Shell Size - Insert:28-21
  • Shell Size, MIL:-
  • Mounting Type:Free Hanging (In-Line)
  • Mounting Feature:-
  • Termination:Solder
  • Fastening Type:Bayonet Lock
  • Orientation:N (Normal)
  • Shell Material:Aluminum Alloy
  • Shell Finish:Zinc
  • Contact Finish - Mating:Silver
  • Color:Black
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Material Flammability Rating:-
  • Features:Coupling Nut, Ground Lug
  • Shielding:-
  • Current Rating (Amps):13A
  • Voltage Rating:-
  • Cable Opening:-
  • Operating Temperature:-55°C ~ 125°C
