2301836-1

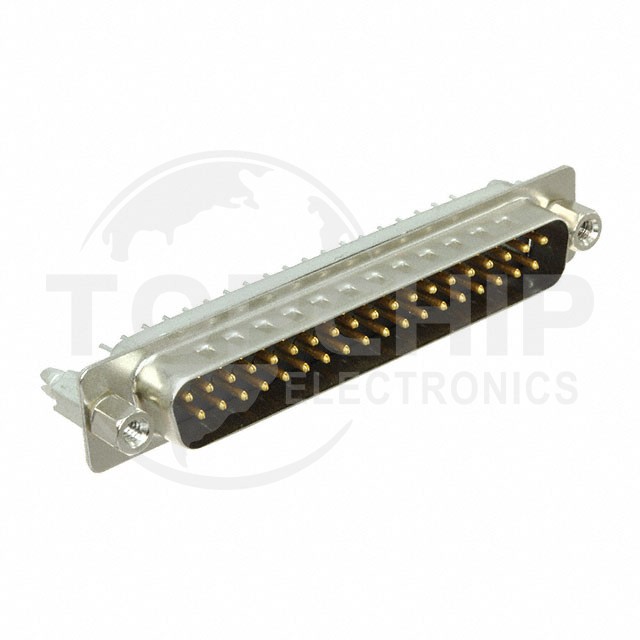

Image is for reference, please contact us to get the real picture

Manufacturer Part
2301836-1
Manufacturer
TE Connectivity AMP Connectors
Description
CONN D-SUB PLUG 37POS VERT SLDR
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
1909
Datasheets
-

2301836-1 Specifications

  • Series:AMPLIMITE HD-20
  • Package:-
  • Part Status:Active
  • Connector Style:D-Sub
  • Connector Type:Plug, Male Pins
  • Number of Positions:37
  • Number of Rows:2
  • Mounting Type:Through Hole
  • Shell Size, Connector Layout:4 (DC, C)
  • Contact Type:Signal
  • Flange Feature:Mating Side, Female Screwlock (4-40)
  • Termination:Solder
  • Shell Material, Finish:Steel, Tin-Nickel Plated
  • Contact Finish:Gold
  • Contact Finish Thickness:15.0µin (0.38µm)
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):1.5A
  • Backset Spacing:-
  • Features:Board Lock, Grounding Indents
