5747842-6

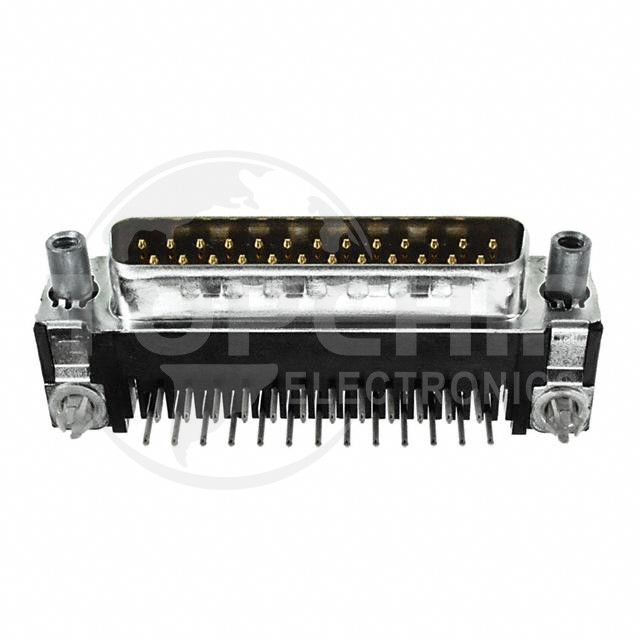

Image is for reference, please contact us to get the real picture

Manufacturer Part
5747842-6
Manufacturer
TE Connectivity AMP Connectors
Description
CONN D-SUB PLUG 25POS R/A SLDR
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
189
Datasheets
-

5747842-6 Specifications

  • Series:AMPLIMITE HD-20
  • Package:Tray
  • Part Status:Active
  • Connector Style:D-Sub
  • Connector Type:Plug, Male Pins
  • Number of Positions:25
  • Number of Rows:2
  • Mounting Type:Through Hole, Right Angle
  • Shell Size, Connector Layout:3 (DB, B)
  • Contact Type:Signal
  • Flange Feature:Mating Side, Female Screwlock (4-40)
  • Termination:Solder
  • Shell Material, Finish:Steel, Tin Plated
  • Contact Finish:Gold
  • Contact Finish Thickness:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):6A
  • Backset Spacing:0.318" (8.08mm)
  • Features:Board Lock, Ground Strap, Grounding Indents
