09561005604

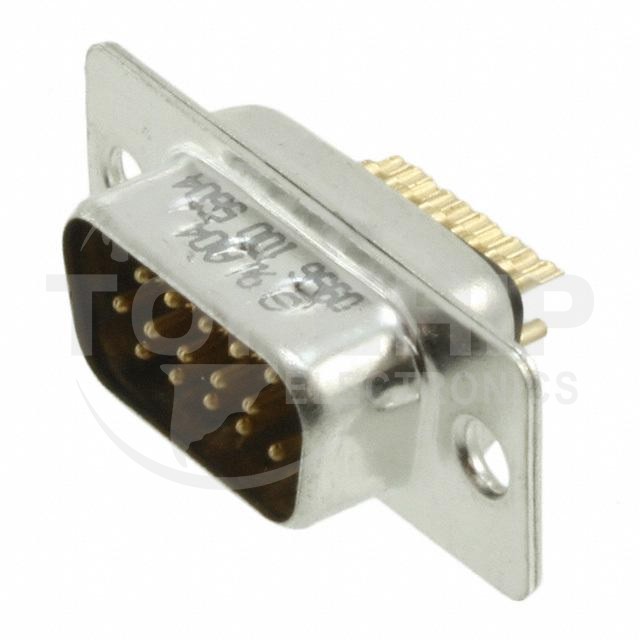

Image is for reference, please contact us to get the real picture

Manufacturer Part
09561005604
Manufacturer
HARTING
Description
CONN D-SUB HD PLUG 15P SLDR CUP
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
117
Datasheets
-

09561005604 Specifications

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Connector Style:D-Sub, High Density
  • Connector Type:Plug, Male Pins
  • Number of Positions:15
  • Number of Rows:3
  • Mounting Type:Free Hanging (In-Line)
  • Shell Size, Connector Layout:1 (DE, E) High Density
  • Contact Type:Signal
  • Flange Feature:Housing/Shell (Unthreaded)
  • Termination:Solder Cup
  • Shell Material, Finish:Steel, Nickel Plated
  • Contact Finish:-
  • Contact Finish Thickness:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):2A
  • Backset Spacing:-
  • Features:Grounding Indents
