LM317AT

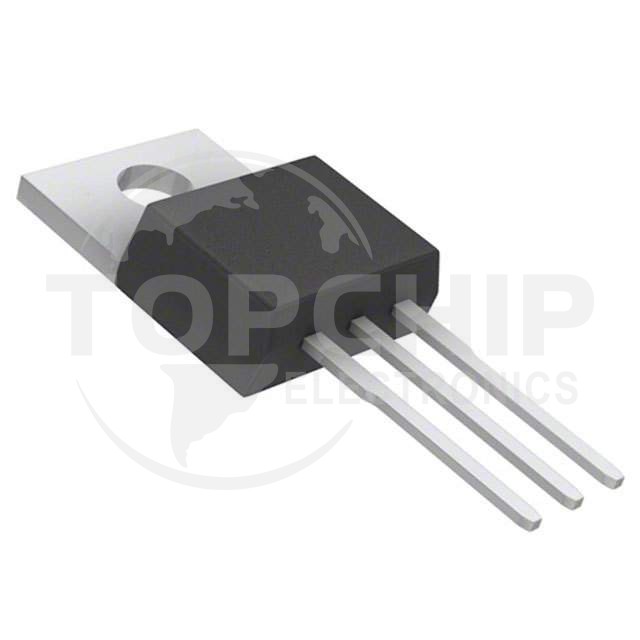

Image is for reference, please contact us to get the real picture

Manufacturer Part
LM317AT
Manufacturer
Texas Instruments
Description
IC REG LIN POS ADJ 1.5A TO220-3
Category
Integrated Circuits
Family
PMIC - Voltage Regulators - Linear
Series
-
In Stock
13569990
Datasheets
-

LM317AT Specifications

  • Series:-
  • Package:Tube
  • Part Status:Not For New Designs
  • Output Configuration:Positive
  • Output Type:Adjustable
  • Number of Regulators:1
  • Voltage - Input (Max):40V
  • Voltage - Output (Min/Fixed):1.25V
  • Voltage - Output (Max):37V
  • Voltage Dropout (Max):-
  • Current - Output:1.5A
  • Current - Quiescent (Iq):10 mA
  • Current - Supply (Max):-
  • PSRR:80dB ~ 65dB (120Hz)
  • Control Features:-
  • Protection Features:Over Temperature, Short Circuit
  • Operating Temperature:-40°C ~ 125°C
  • Mounting Type:Through Hole
  • Package / Case:TO-220-3
  • Supplier Device Package:TO-220-3
