LP38856S-0.8/NOPB Specifications

• Series:-
• Package:Bulk
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):0.8V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.45V @ 3A
• Current - Output:3A
• Current - Quiescent (Iq):300 µA
• Current - Supply (Max):15 mA
• PSRR:80dB ~ 65dB (120Hz ~ 1kHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount

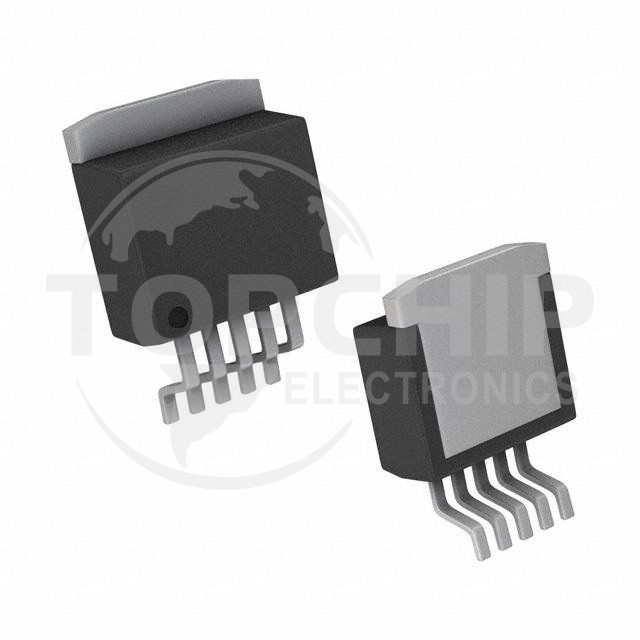

• Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
• Supplier Device Package:DDPAK/TO-263-5
