NCV8705ML33TCG Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):3.3V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.35V @ 500mA
• Current - Output:500mA
• Current - Quiescent (Iq):25 µA
• Current - Supply (Max):260 µA
• PSRR:73dB ~ 56dB (100Hz ~ 10kHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount, Wettable Flank

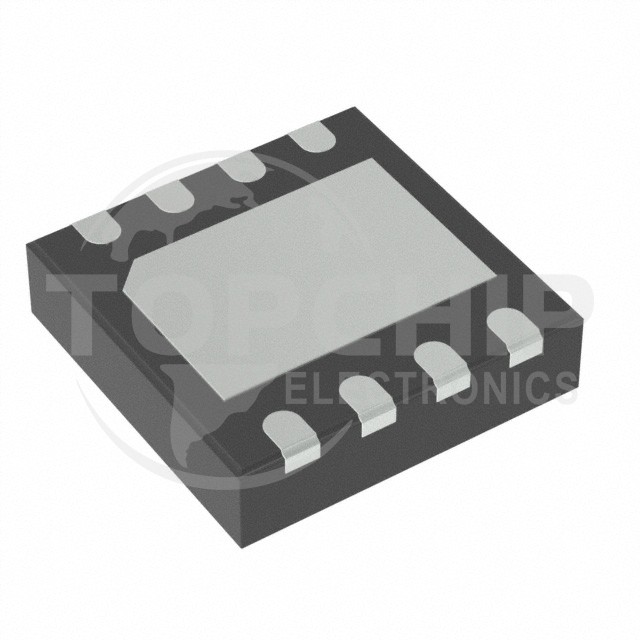

• Package / Case:8-VDFN Exposed Pad
• Supplier Device Package:8-DFNW (3x3)
