TPS71701QDRVRQ1 Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):6.5V
• Voltage - Output (Min/Fixed):0.9V
• Voltage - Output (Max):6.2V
• Voltage Dropout (Max):0.3V @ 150mA
• Current - Output:150mA
• Current - Quiescent (Iq):80 µA
• Current - Supply (Max):100 µA
• PSRR:70dB ~ 45dB (100Hz ~ 1MHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount

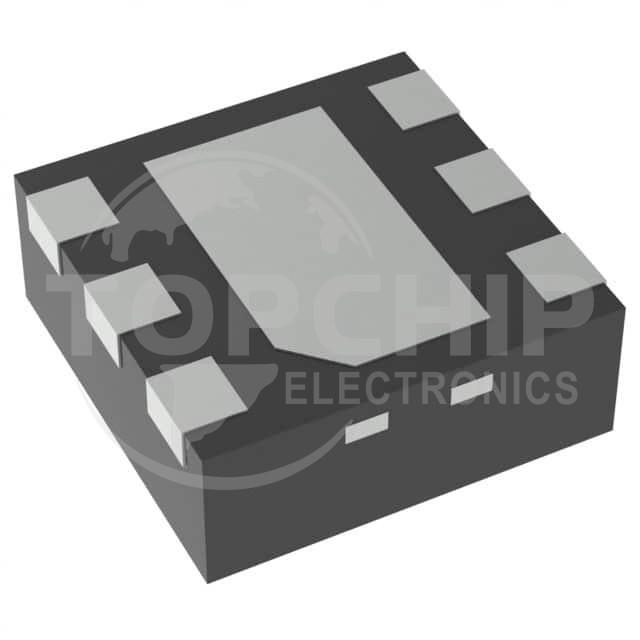

• Package / Case:6-WDFN Exposed Pad
• Supplier Device Package:6-WSON (2x2)
