LT3045IDD-1#PBF Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Output Configuration:Positive
• Output Type:Programmable
• Number of Regulators:1
• Voltage - Input (Max):20V
• Voltage - Output (Min/Fixed):0V
• Voltage - Output (Max):15V
• Voltage Dropout (Max):0.45V @ 500mA
• Current - Output:500mA
• Current - Quiescent (Iq):20 µA
• Current - Supply (Max):25 mA
• PSRR:117dB ~ 53dB (120Hz ~ 10MHz)
• Control Features:Enable, Power Good, Soft Start
• Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount

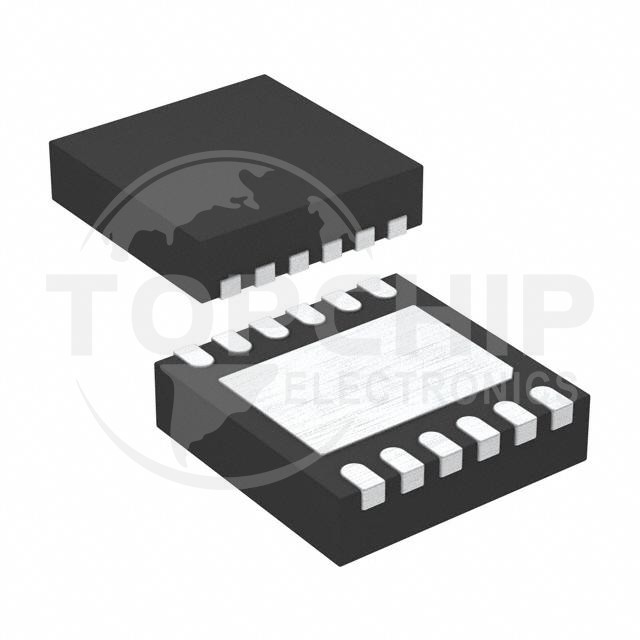

• Package / Case:12-WFDFN Exposed Pad
• Supplier Device Package:12-DFN (3x3)
