TPS72301QDBVRQ1

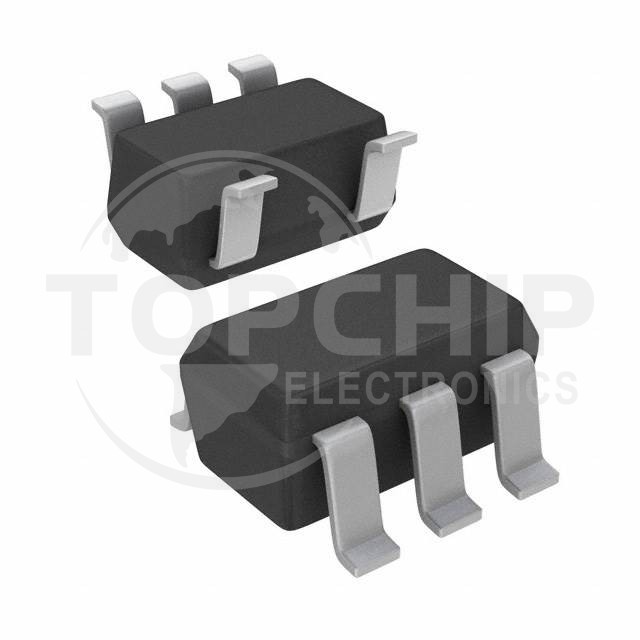

Image is for reference, please contact us to get the real picture

Manufacturer Part
TPS72301QDBVRQ1
Manufacturer
Texas Instruments
Description
IC REG LIN NEG ADJ 200MA SOT23-5
Category
Integrated Circuits
Family
PMIC - Voltage Regulators - Linear
Series
-
In Stock
2270
Datasheets
-

TPS72301QDBVRQ1 Specifications

  • Series:Automotive, AEC-Q100
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Output Configuration:Negative
  • Output Type:Adjustable
  • Number of Regulators:1
  • Voltage - Input (Max):-10V
  • Voltage - Output (Min/Fixed):-1.2V
  • Voltage - Output (Max):-10V
  • Voltage Dropout (Max):0.5V @ 200mA
  • Current - Output:200mA
  • Current - Quiescent (Iq):200 µA
  • Current - Supply (Max):500 µA
  • PSRR:65dB ~ 48dB (1kHz ~ 10kHz)
  • Control Features:Enable
  • Protection Features:Over Current, Over Temperature, Short Circuit
  • Operating Temperature:-40°C ~ 125°C
  • Mounting Type:Surface Mount
  • Package / Case:SC-74A, SOT-753
  • Supplier Device Package:SOT-23-5
