TPS7B8125QDGNRQ1 Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):40V
• Voltage - Output (Min/Fixed):3.3V, 5V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.65V @ 150mA, 0.54V @ 150mA
• Current - Output:150mA
• Current - Quiescent (Iq):3.5 µA
• Current - Supply (Max):6.5 µA
• PSRR:60dB (100Hz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

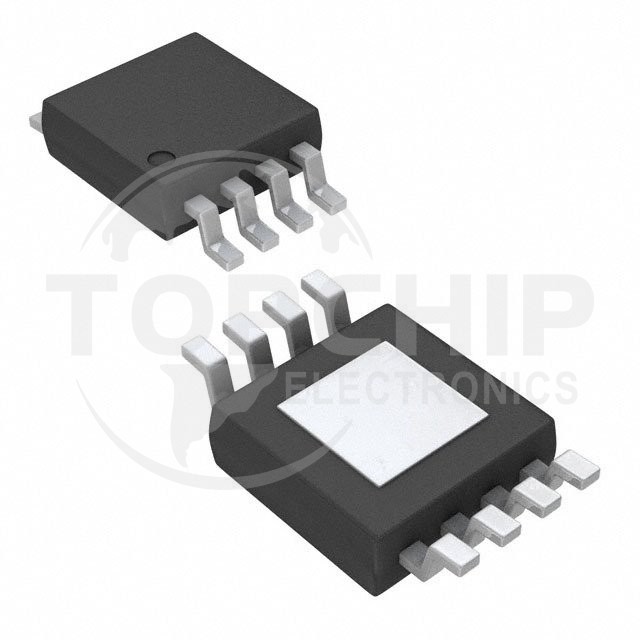

• Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
• Supplier Device Package:8-MSOP-PowerPad
