TPS78601KTTR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):1.2V
• Voltage - Output (Max):5.5V
• Voltage Dropout (Max):0.47V @ 1.5A
• Current - Output:1.5A
• Current - Quiescent (Iq):385 µA
• Current - Supply (Max):-
• PSRR:59dB ~ 32dB (100Hz ~ 100kHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount

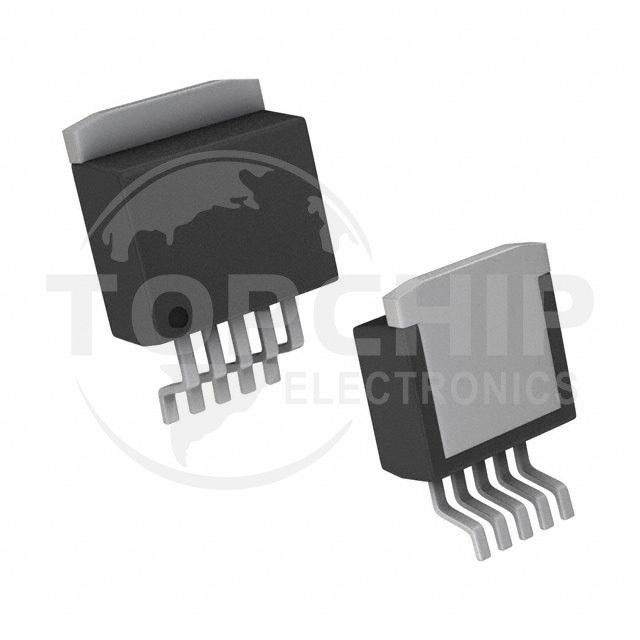

• Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
• Supplier Device Package:DDPAK/TO-263-5
