TLE4276GV50ATMA3 Specifications

• Series:Automotive, AEC-Q100, OPTIREG™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):40V
• Voltage - Output (Min/Fixed):5V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.5V @ 250mA
• Current - Output:400mA
• Current - Quiescent (Iq):200 µA
• Current - Supply (Max):25 mA
• PSRR:54dB (100Hz)
• Control Features:Inhibit
• Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
• Operating Temperature:-40°C ~ 150°C
• Mounting Type:Surface Mount

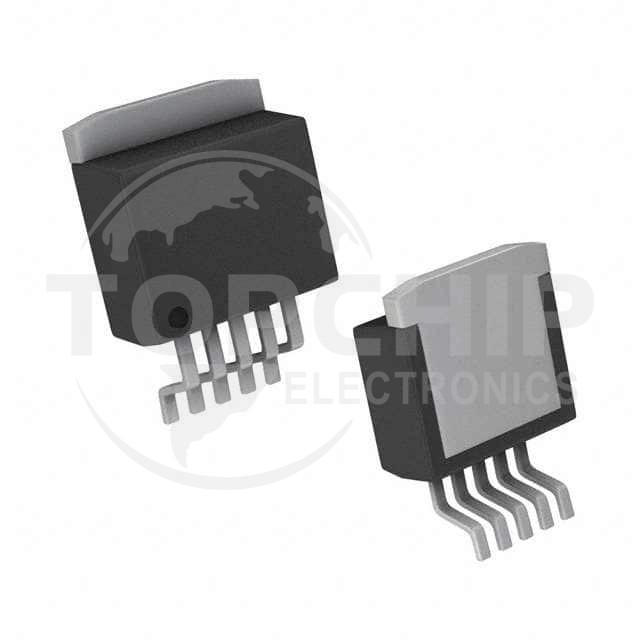

• Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
• Supplier Device Package:P-TO220-5-122
