TLV7162818PDPQT Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:2
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):2.8V, 1.8V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.45V @ 150mA, 0.9V @ 150mA
• Current - Output:150mA
• Current - Quiescent (Iq):75 µA
• Current - Supply (Max):-
• PSRR:80dB ~ 46dB (100Hz ~ 10kHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount

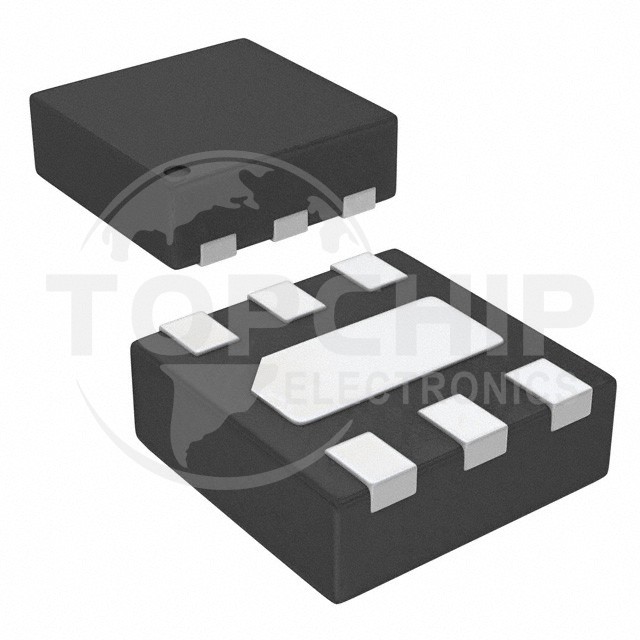

• Package / Case:6-XFDFN Exposed Pad
• Supplier Device Package:6-X2SON (1.2x1.2)
