LDFM33PUR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):16V
• Voltage - Output (Min/Fixed):3.3V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.3V @ 500mA
• Current - Output:500mA
• Current - Quiescent (Iq):800 µA
• Current - Supply (Max):-
• PSRR:60dB ~ 52dB (120Hz ~ 100kHz)
• Control Features:Enable, Power Good
• Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount

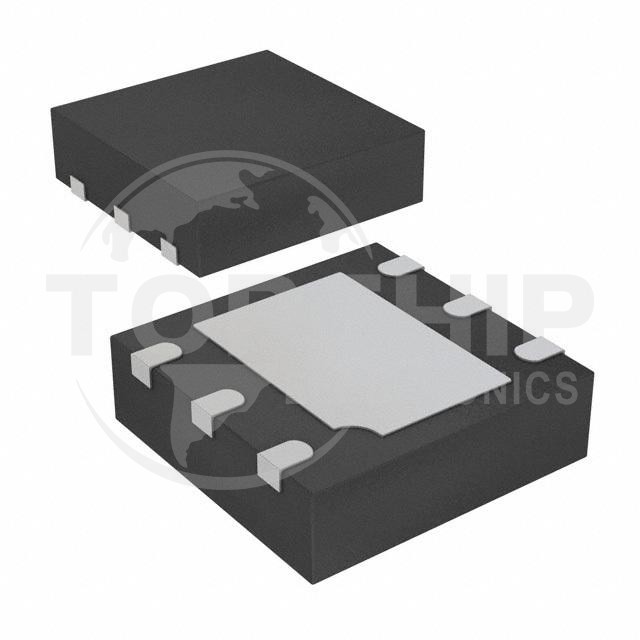

• Package / Case:6-VDFN Exposed Pad
• Supplier Device Package:6-DFN (3x3)
