LDL212PVR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):18V
• Voltage - Output (Min/Fixed):1.18V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.6V @ 1.2A
• Current - Output:1.2A
• Current - Quiescent (Iq):380 µA
• Current - Supply (Max):380 µA
• PSRR:87dB ~ 50dB (120Hz ~ 100kHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount

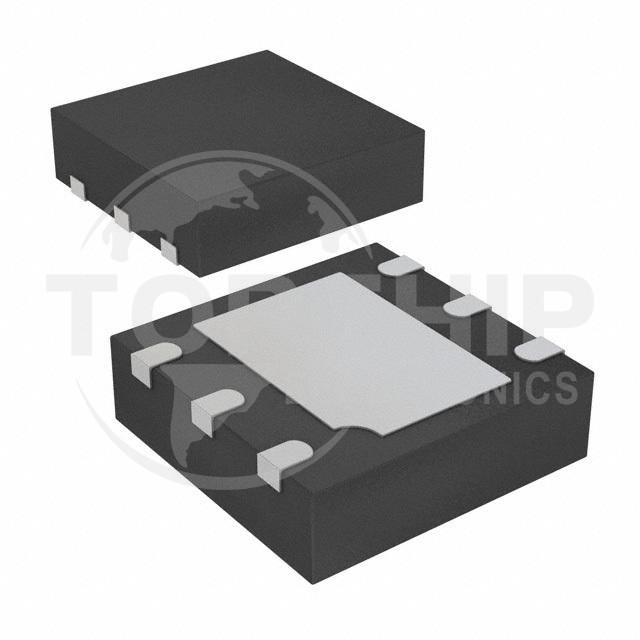

• Package / Case:6-WFDFN Exposed Pad
• Supplier Device Package:6-DFN (2x2)
