AP2411AMP-13 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Type:USB Switch
• Number of Outputs:1
• Ratio - Input:Output:1:1
• Output Configuration:High Side
• Output Type:P-Channel
• Interface:On/Off
• Voltage - Load:2.7V ~ 5.5V
• Voltage - Supply (Vcc/Vdd):Not Required
• Current - Output (Max):2A
• Rds On (Typ):70mOhm
• Input Type:Non-Inverting
• Features:Load Discharge, Slew Rate Controlled, Status Flag
• Fault Protection:Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

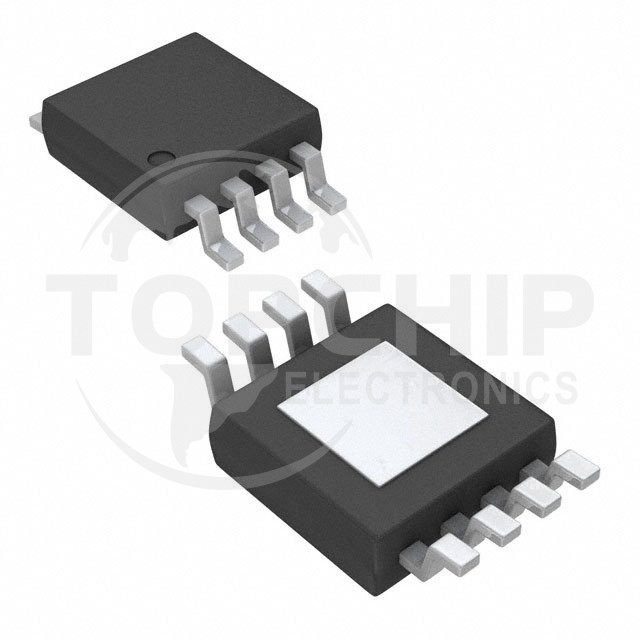

• Supplier Device Package:8-MSOP-EP
• Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
