TMUX1101DBVR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):4Ohm
• Channel-to-Channel Matching (ΔRon):850mOhm
• Voltage - Supply, Single (V+):1.08V ~ 5.5V
• Voltage - Supply, Dual (V±):1.08V ~ 5.5V
• Switch Time (Ton, Toff) (Max):-
• -3db Bandwidth:300MHz
• Charge Injection:-1.5pC
• Channel Capacitance (CS(off), CD(off)):6pF, 10pF
• Current - Leakage (IS(off)) (Max):80pA
• Crosstalk:-
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

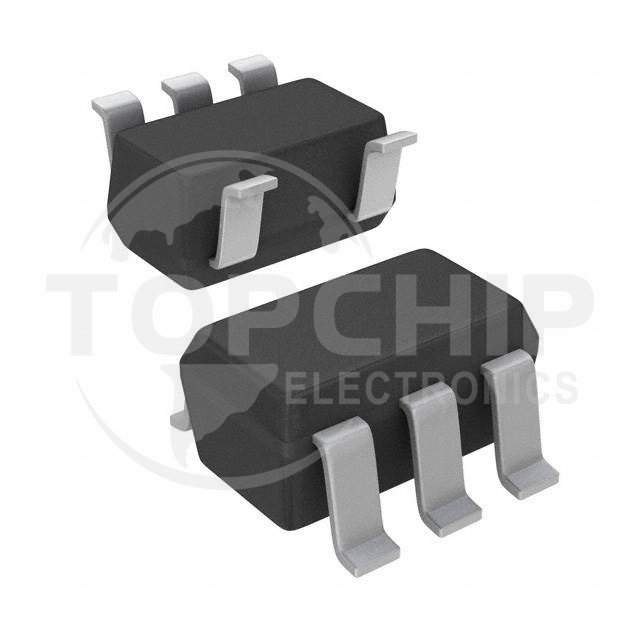

• Package / Case:SC-74A, SOT-753
• Supplier Device Package:SOT-23-5
