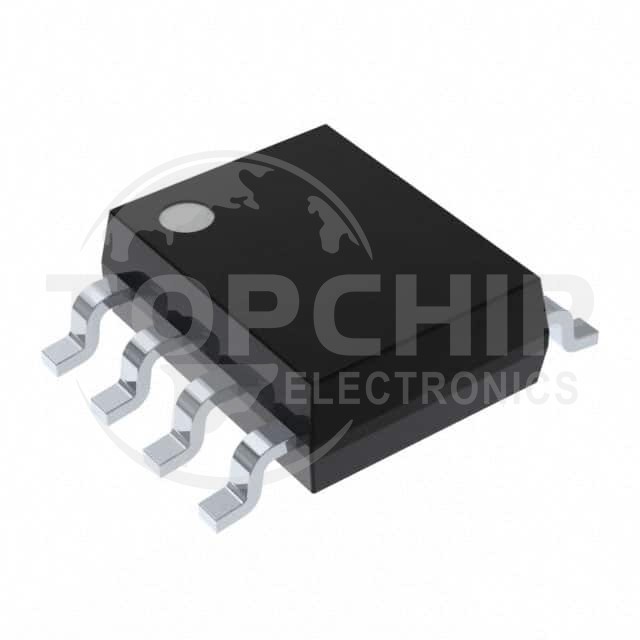

MAX317ESA+ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SPST - NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):35Ohm
• Channel-to-Channel Matching (ΔRon):2Ohm (Max)
• Voltage - Supply, Single (V+):10V ~ 30V
• Voltage - Supply, Dual (V±):±4.5V ~ 20V
• Switch Time (Ton, Toff) (Max):175ns, 145ns
• -3db Bandwidth:-
• Charge Injection:3pC
• Channel Capacitance (CS(off), CD(off)):8pF, 8pF
• Current - Leakage (IS(off)) (Max):250pA
• Crosstalk:-85dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:8-SOIC
