SN74LV4053ARGYR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:3
• On-State Resistance (Max):75Ohm
• Channel-to-Channel Matching (ΔRon):1.3Ohm
• Voltage - Supply, Single (V+):2V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):14ns, 14ns
• -3db Bandwidth:50MHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):0.5pF, 8.2pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-45dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

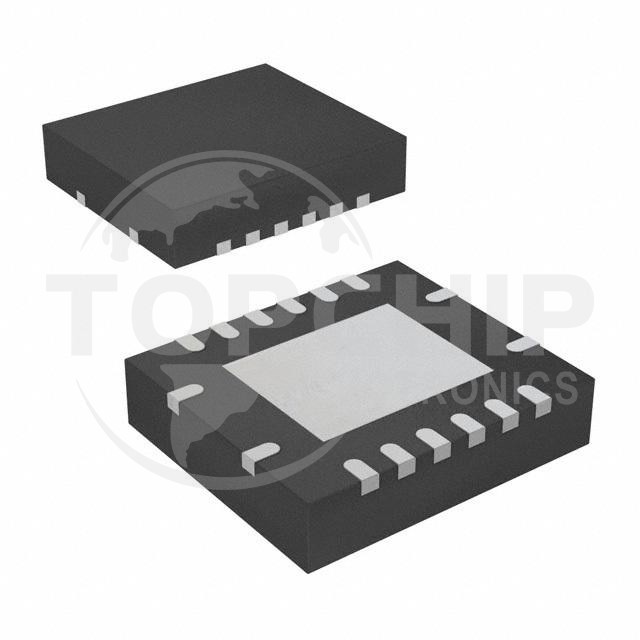

• Package / Case:16-VFQFN Exposed Pad
• Supplier Device Package:16-VQFN (4x4)
