ADG633YCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:3
• On-State Resistance (Max):75Ohm
• Channel-to-Channel Matching (ΔRon):800mOhm
• Voltage - Supply, Single (V+):2V ~ 12V
• Voltage - Supply, Dual (V±):±2V ~ 6V
• Switch Time (Ton, Toff) (Max):95ns, 40ns
• -3db Bandwidth:580MHz
• Charge Injection:2pC
• Channel Capacitance (CS(off), CD(off)):4pF, 7pF
• Current - Leakage (IS(off)) (Max):200pA
• Crosstalk:-90dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

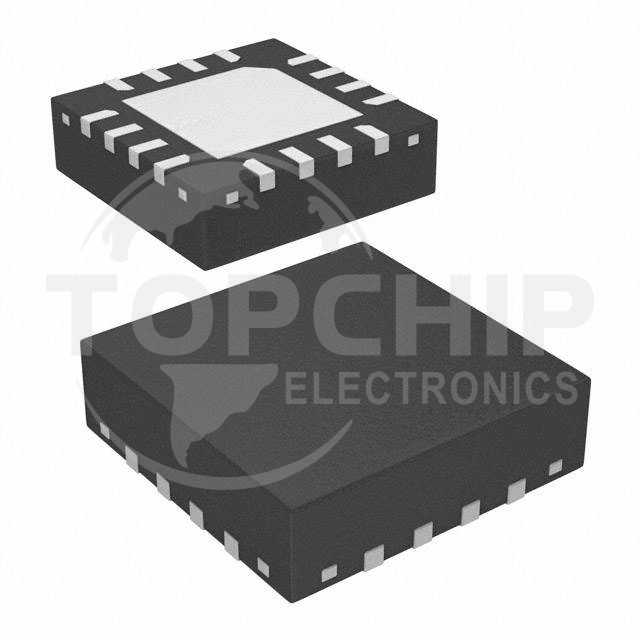

• Package / Case:16-VQFN Exposed Pad, CSP
• Supplier Device Package:16-LFCSP-VQ (4x4)
