HD3SS3411TRWARQ1 Specifications

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):8Ohm
• Channel-to-Channel Matching (ΔRon):500mOhm (Max)
• Voltage - Supply, Single (V+):3V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):-
• -3db Bandwidth:7.5GHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):-
• Current - Leakage (IS(off)) (Max):-
• Crosstalk:-35dB @ 4Ghz
• Operating Temperature:-40°C ~ 105°C (TA)
• Mounting Type:Surface Mount

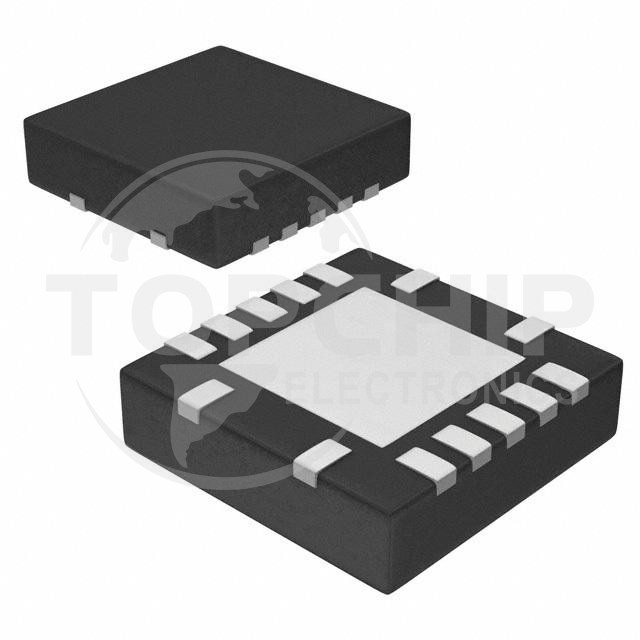

• Package / Case:14-WFQFN Exposed Pad
• Supplier Device Package:14-WQFN (3.5x3.5)
