ADG824BCPZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):800mOhm
• Channel-to-Channel Matching (ΔRon):3mOhm
• Voltage - Supply, Single (V+):1.65V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):9.5ns, 7.7ns
• -3db Bandwidth:90MHz
• Charge Injection:27pC
• Channel Capacitance (CS(off), CD(off)):25pF
• Current - Leakage (IS(off)) (Max):200pA (Typ)
• Crosstalk:-90dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

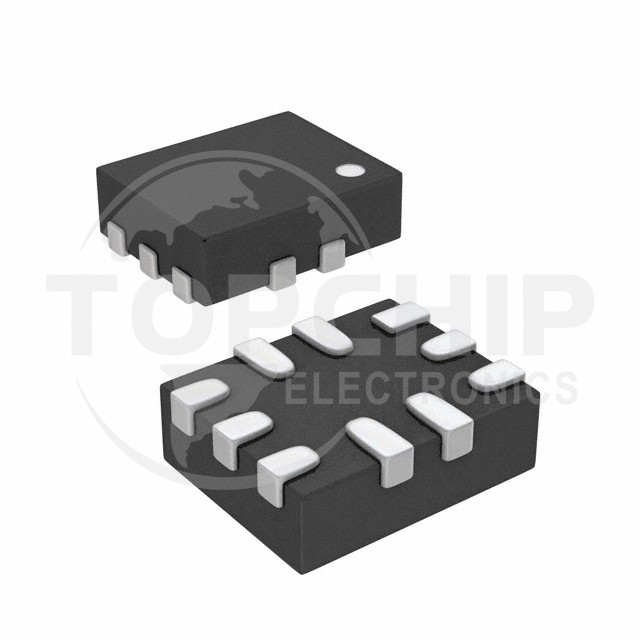

• Package / Case:10-UFQFN, CSP
• Supplier Device Package:10-LFCSP-UQ (1.6x1.3)
